Sample shot session

This sample run demonstrates a complete shot workflow from Home through Data View verification.

Example workflow

This guide assumes first-time use and starts from Home.

  1. Open Shot Mode.
  2. In the SmartDot Connect Widget, press Scan for SmartDot.
  3. After scan completes, select a SmartDot that matches a device in the arm.
    • SI:MU:LA:TE:DD:OT is the simulated SmartDot.
    • On desktop builds, simulated SmartDot is the available option.
  4. Configure Spin:
    • Start value: 300
    • End value: 450
  5. Configure Angle:
    • Start value: 30
    • End value: 10
  6. Configure Tilt:
    • Start value: 15
    • End value: 10
  7. Add Spin curve points to match this example:

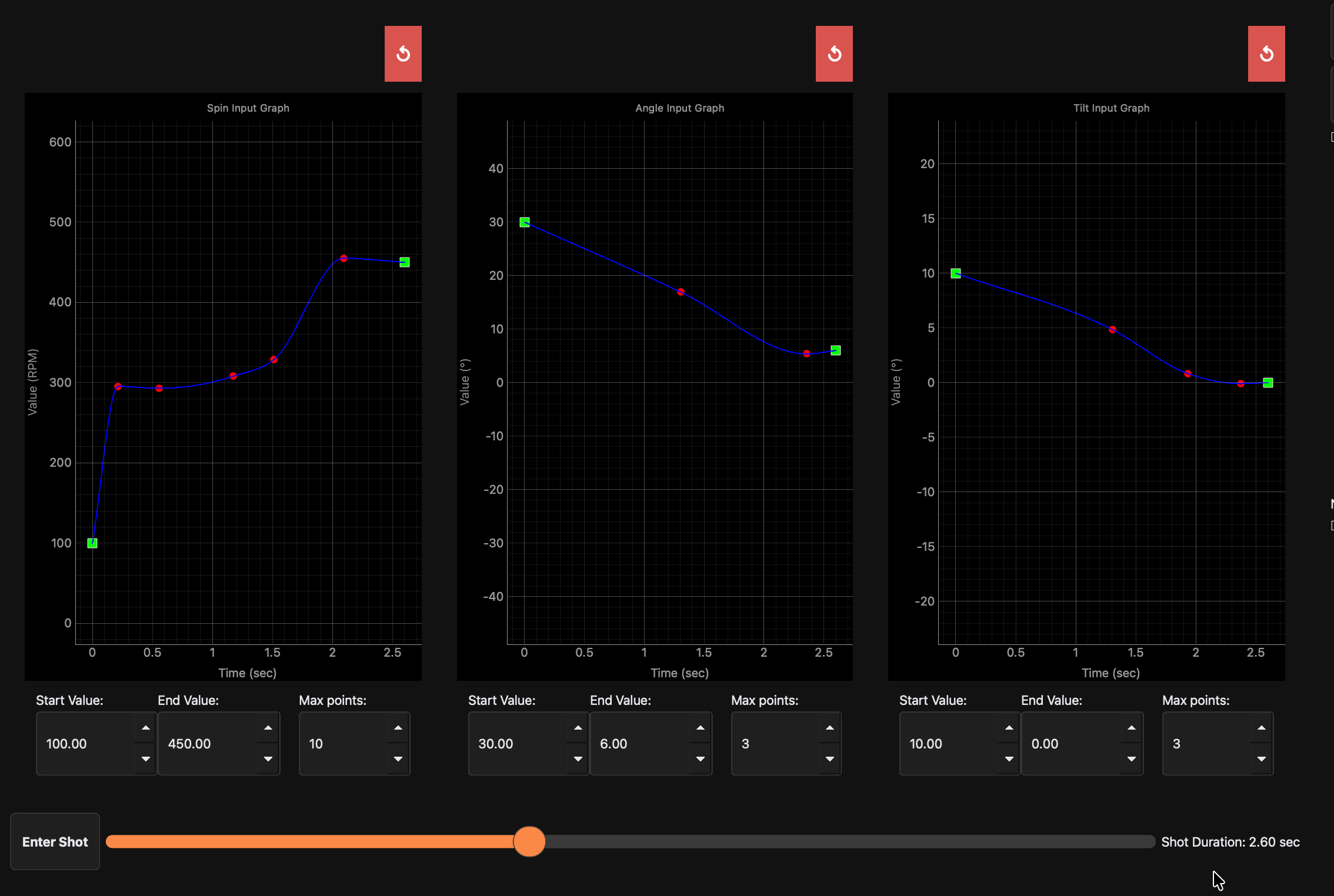

Sample Spin Curve
  1. Set shot duration slider to 2.6 seconds.
  2. Press Enter Shot.
  3. After the shot completes, press Analyze.
  4. Run analysis actions and review output in Analysis Mode.
  5. Open wavelet analysis and follow Wavelet Dialog guidance.
  6. Press Save, enter a session name, and submit.
  7. Return to Home and open Data View.
  8. Set end date/time to today and one hour ahead, then press Search.
  9. Confirm the new shot appears in Data View.

Expected result

  • A complete shot session appears in Data View.
  • Replay and Analyze actions work for the saved session.
  • Instruction points remain available for Edit operations.

Troubleshooting

  • No SmartDot appears after scan

    • Re-run scan in SmartDot Connect Widget.
    • Confirm SmartDot is powered and within range.
    • On desktop builds, use SI:MU:LA:TE:DD:OT.

  • Shot does not start after pressing Enter Shot

    • Confirm SmartDot is connected first.
    • Confirm shot inputs and duration are set.
    • Return to Shot Mode and retry.

  • Session does not appear in Data View

    • Confirm save/submit completed successfully.
    • Expand date/time range and press Search again in Data View.
    • Verify the session-type filter includes shot sessions.
